Why Choose PCBMay for Medical Endoscope PCBs?
- Ultra-Thin HDI for Minimal Invasive Access: We support advanced HDI fabrication with laser-drilled microvias and 3/3 mil fine-line technology. Combined with precision 01005 SMT assembly, our ultra-thin PCB structures help fit more functions and components into the limited space of modern endoscopic devices. Our ultra-compact board structures are also suitable for capsule endoscopy designs that require extreme miniaturization.
- Superior Signal Integrity for Real-Time Video: Our endoscope PCBs ensure stable signal performance, supporting accurate image output, sensor data acquisition, and real-time communication for endoscopic systems.
- High-Reliability Rigid-Flex Construction: Endoscopes demand repeated bending and maneuvering. We utilize high-grade Polyimide (PI) and specialized flexible adhesives to ensure our rigid-flex boards withstand mechanical stress and tight bend radii without circuit fatigue or signal loss.
- Biocompatible and & Medically Compliant Materials: We adopt biocompatible base materials and qualified surface finishes for medical scenarios, meeting medical safety regulations and long-term reliability requirements.
- Cleanability & Sterilization Resistance: Our PCB solutions are compatible with standard medical cleaning and sterilization processes for endoscope devices, delivering long-term durability for repeated clinical use.
What is a Medical Endoscope PCB?
A Medical Endoscope PCB is a high-precision, medical-grade circuit board specifically fabricated for endoscopic diagnostic and surgical tools. It serves as the core electronic backbone of the equipment, responsible for capturing high-definition visual data from image sensors and transmitting it through a narrow insertion tube to a display monitor. Because these boards are used inside the human body, they must adhere to much stricter safety, reliability, and biocompatibility standards than standard consumer electronics.
These PCBs are essential for a wide range of devices, including gastroscopes, colonoscopes, bronchoscopes, and laparoscopes used in minimally invasive surgeries.
At PCBMay, we fuse advanced HDI, flexible, and rigid-flex manufacturing to redefine the limits of endoscopic miniaturization. Our precision craftsmanship delivers smaller probe diameters that enhance patient comfort and surgical accuracy, while our complex multilayer designs support ergonomic, high-performance handheld controllers. We engineer every board to ensure rock-solid electrical stability and uninterrupted, high-definition video feeds—even through the tightest anatomical navigation.
Ready to optimize your medical device performance? Contact us today to discuss your specifications or request a custom quote for your next project.
PCBMay Service Advantage for Your Medical Endoscope PCB
PCBMay offers high-quality medical-grade PCBs tailored for the manufacturing and assembly of advanced endoscopic systems. We provide stable, compliant, and ultra-miniaturized solutions that meet the rigorous demands of surgical environments and diagnostic clinics.
Our rapid fabrication helps you accelerate your R&D cycle, allowing you to refine your endoscope design and clear clinical testing much faster.
Our engineering team reviews your design before production to improve manufacturability. We optimize your stackup for controlled impedance and signal integrity, ensuring your high-speed imaging data is error-free before production begins.
As a one-stop shop, we manage everything from medical-grade part sourcing to precision 0201 SMT assembly. All processes are conducted under strict ESD protection
Our production lines follow the ISO 13485 medical device quality management standard and IPC Class 3 requirements. We provide full process traceability and detailed quality documentation, ensuring your endoscope PCBs meet global regulatory compliance and safety standards.
Medical Endoscope PCB Case Studies
These case studies highlight real-world applications of Medical Endoscope PCB designs, engineered for the high-fidelity signal conditioning and superior imaging accuracy required in clinical diagnostics.

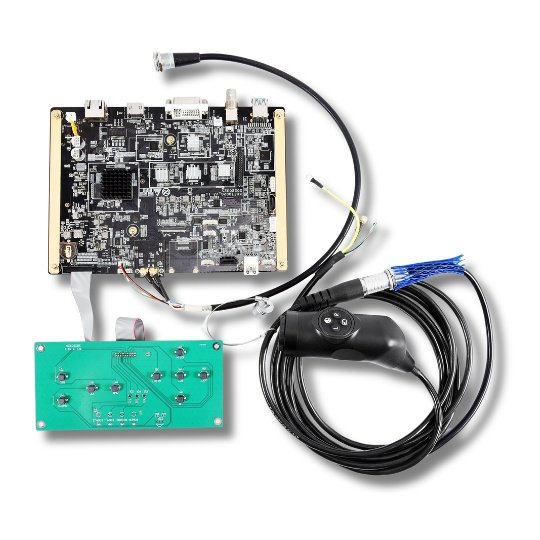

PCBMay provides high-precision medical-grade PCBs and full turnkey services for diagnostic and surgical endoscope equipment. The customer required a compact, high-density PCB and PCBA solution that supports medical-grade sterilization, while hoping to simplify the supply chain and cooperate with only one manufacturer. We took full responsibility for the entire production process, including medical-grade component sourcing, 8-layer high-density PCB fabrication, ultra-fine SMT assembly, and supporting custom cable assembly. The final solution features stable high-speed signal performance, excellent bending durability, and clinical safety, fully meeting the application requirements of medical endoscopes for miniaturization and high reliability.
Technical Specifications:
- Layer Count: 8 layers
- Material: High-Tg FR-4 (Shengyi S1000-2) / Polyimide (PI) hybrid stackup
- Board Thickness: Rigid section: 1.6mm; Flexible section: 0.15mm
- Copper Thickness: 1 oz
- Min Line/Spacing: 3mil/3mil
- Surface Finish: ENIG
- Component Assembly: Supports 01005 & 0201 SMD components, fine-pitch high-density assembly
- Additional Service: Custom cable assembly for endoscopic interconnect systems
- Certifications: ISO 13485 Certified, IPC Class 3 Qualified, RoHS Compliant
- Application: Medical Endoscope System Control PCB & Turnkey Solution
PCBMay recently provided this high-precision, medical-grade PCB and PCBA solution for advanced 4K diagnostic and surgical endoscope systems.
The customer focuses on device R&D and system design, requiring PCBMay to handle the full manufacturing process. We therefore delivered a comprehensive turnkey service, including professional medical-grade component sourcing, high-density PCB fabrication, precision SMT assembly, and custom cable assembly. This fully supports the customer’s project requirements for compact structure and high clinical reliability in endoscopic applications.
Technical Specifications:
- Layer Count: 8 layers
- Material: Megtron 6
- Board Thickness: 1.6mm
- Copper Thickness: 1 oz
- Min Line/Spacing: 3mil/3mil
- Surface Finish: ENIG
- Component Assembly: Over 80+ unique components, including 01005 min package and fine-pitch BGAs
- Additional Service: Custom cable assembly for endoscopic interconnect systems
- Certifications: ISO 13485 Certified, IPC Class 3 Qualified, RoHS Compliant
- Application: 4K diagnostic and surgical endoscope systems
Testimonials
We collaborated with PCBMay for our surgical laparoscope production, and their focus on high-speed signal integrity is unparalleled. Our endoscopes provide lag-free, high-definition visualization because of the exceptional impedance control and precision ENIG finishes they maintain across our complex, multi-layer designs.
Dr. Aris ThornePrincipal Electrical EngineerOur ultra-slim disposable endoscope PCBs had to meet extreme miniaturization standards without sacrificing reliability. PCBMay delivered high-density HDI and rigid-flex layouts that passed all clinical safety tests. Their ability to handle 2/2 mil trace/space and precision 0201 assembly allowed us to significantly reduce the probe diameter. For high-stakes medical imaging, they are our partner of choice.
Elena RodriguezMedical Systems Design Engineer
Related Product
We manage everything from specialized medical part sourcing to final functional testing. Our all-in-one approach for medical endoscope PCBAs streamlines your production timeline while ensuring every unit meets the highest clinical standards for imaging and control.
Our flagship offering for mission-critical life-safety applications. These boards deliver beyond 24/7 reliable performance in endoscopes, ventilators, and surgical systems, supported by full traceability and ISO 13485 compliance.
These boards offer the essential thinness and high-repetition durability required for endoscope insertion tubes. Utilizing high-quality polyimide substrates, they ensure consistent signal stability even when the device is navigated through tight anatomical pathways.
Compact internal connection of endoscopic systems, eliminating the need for extra connecting parts. Rigid sections ensure stable PCB mounting, while flexible sections deliver outstanding mechanical bending endurance for frequent maneuvering in clinical use.
We offer advanced fabrication up to 40 layers. The superior signal shielding of our multilayer boards allows delicate high-speed video signals to be perfectly insulated from electromagnetic interference and digital noise in complex medical environments.
Key Manufacturing Difficulties of Endoscope PCB
The main hurdles in making an Endoscope PCB are managing limited space and ensuring the electrical performance for imaging in medicine is high. In ultra-miniaturized component placement, complex material selection, and stringent quality certifications, malfunctioning of the device inside the human body must be avoided.
Ultra-Miniaturization & High-Density Fabrication
The fabrication of ultra-thin, micro-HDI endoscopic PCBs presents considerable process challenges. It requires extremely tight size tolerances and advanced multilayer microvia technology to achieve high-density routing within an ultra-compact footprint. This requires mature processes and advanced equipment control to ensure reliable installation and electrical performance.
Flex & Rigid-Flex PCB Manufacturing Challenges
Creating a flexible PCB for disposable endoscopes poses a challenge as the PCB must constantly bend without cracking the copper traces. To provide the sensor with structural support while ensuring flexibility of the probe, you usually employ a rigid-flex PCB design. A major challenge is that the bond between the polyimide substrate and rigid sections must not break during sterilization.
Medical-Grade PCB Material Requirements
The choice of PCB material must be biocompatible and not cause a reaction in human tissue or fluids during surgery. To avoid damage to the sensitive electronics, these materials must have sterilization-compatible PCB coatings. The PCB materials used in medical endoscopes should be selected and controlled under a quality management system compliant with ISO 13485. Furthermore, their sterilization compatibility and reliability must be verified according to application requirements.
High-Speed Impedance & Signal Stability Control
With a 4K video being transmitted through the narrow cable of a laparoscope PCB, it is important that the signal integrity is maintained. Impedance Control of the MIPI interface must be strict to avoid data loss and image flickering. By managing high-speed differential pairs in endoscopy cables, we can cancel noise for a clean signal at the video processor. In long endoscopy cables, proper layout techniques help reduce the signal loss during critical surgery.
Precision Endoscope PCB Assembly Difficulties
Making these boards is a precise job because of the use of small parts in them. These devices must meet a strict quality standard and medical safety standards. Placing tiny components while ensuring high reliability ensures imaging clarity during surgery.
Medical-Grade Component Sourcing Challenges
Medical endoscope projects require medical-grade electronic components, and their supply chains must be traceable. All components must meet medical industry standards, and suppliers must undergo rigorous selection to ensure compatibility, longevity, and overall device safety in clinical settings.
Ultra-Small Component Precision Mounting
Endoscope miniaturization demands handling of 01005 ultra-small micro-components in SMT production. It requires high-precision automated placement equipment and refined process parameters to avoid component damage, offset, or cold solder joints in ultra-fine assembly work.
Compact Space High-Density Assembly
Endoscope probe and internal structures feature extremely limited mounting space. High-density medical PCB assembly layout requires precise spacing control to prevent circuit short circuits and signal interference, maintaining stable electrical performance in compact encapsulated environments.
System Architecture & Regulatory Requirements
Creating the PCB for an endoscope requires a careful balance of complex electronics and medical safety requirements. By integrating high-speed imaging sensors into robust physical structures, the devices can function properly in a controlled clinical environment.
Rigid-Flex Manufacturing Integration
To readily combine the stability of rigid boards with the bendability of flexible circuits, one can use rigid-flex PCB design for surgical instruments. The video processor is at a stable location, while the micro-PCB can travel through tightly packed anatomical locations. The polyimide substrate should be manufactured properly so that after repeated mechanical stress, the signal connection does not get lost.
Compliance with IEC 60601-1 & IEC 60601-2-18
In order to shield patients from electric shocks and mechanical failures, an IEC 60601-1 medical imaging PCBA is essential. IEC 60601-2-18 refers to endoscopic equipment and mandates the use of ISO 13485-certified medical PCB assembly methods. Following these regulations will ensure the gastroscope PCB is safe for internal use and will also pass global regulatory audits.
High-Speed Signal Integrity
In order to transmit real-time high-definition video, the integrity of the signal must be preserved throughout the circuit path. To ensure that the surgeon can see a clear and accurate image and not experience any lag or data corruption, precise board layout techniques are required.
MIPI CSI-2 & LVDS Differential Signaling
To support the high data rates needed for 4K UHD medical endoscope video processing, you must implement impedance control for MIPI interfaces. Using high-speed differential pairs for your endoscopy cables reduces noise and timing errors. This setup ensures that the CMOS image sensor data reaches the processor in its original form.
EMI/EMC Shielding & Grounding Techniques
Medical imaging sensors must reduce EMI to avoid interference from other equipment within the hospital. Use dedicated ground planes and metal shields to isolate the MIPI CSI-2 signals from noise from external interference. If the CCD Sensor PCB is not properly grounded, it can cause instability and flicker.
LED Constant Current Driving Circuits
An LED illumination board should use a stable, constant current driver for consistent brightness and the prevention of thermal failure. Careful design of heat dissipation for endoscope LED modules is required to keep the probe tip cool during use. Such a reliable imaging process enables them to see inside the body without damage.
Endoscope PCBs Materials Selection Guide
Choosing suitable materials is critical to get an Endoscope PCB that is sufficiently durable to function in clinical conditions and adequately small for internal navigation. Choosing substrates and finishes that enable high-density interconnect for medical endoscopes while ensuring patient safety is needed.
High-Density Interconnect (HDI) & Micro-vias
To achieve the required miniaturization for a gastroscope PCB, you must employ HDI PCB technology with laser-drilled microvias. With this construction, the circuit can be routed through multiple layers without increasing the size of the PCB. The only way to consistently integrate a miniature camera module into a tiny probe is through these advanced structures.
Biocompatible Surface Finishes (ENIG/ENEPIG)
Choosing a biocompatible PCB finish like ENIG or ENEPIG will prevent any toxic reactions and ensure effective solder joint long-term reliability. They provide flat, reliable soldering surfaces for high-density component mounting, excellent corrosion resistance to withstand repeated medical sterilization cycles, and fully meet surgical safety and long-term reliability standards.
Endoscope PCB/PCBA Testing & Validation
In the realm of medical equipment, it is absolutely vital that no scope ever malfunctions while being used on a patient. To guarantee this, testing and validation are undertaken to ensure that every Endoscope PCB works 100% of the time. To ensure that the medical imaging PCBA is safe to be used in surgery, you need to carry out strict electrical, structural, and functional checks.
PCB Electrical Testing
It is necessary to conduct a flying probe or a bed of nails test to confirm the continuity and isolation of the micro PCB circuitry. This step checks for shorts or open circuits on the high-speed differential pairs used in endoscopy cables, which can cause signal loss. Electrical testing is the first line of defense for high-resolution image signal integrity.
X-Ray Inspection
X-ray testing is essential for high-density miniature endoscope PCBs that use ultra-fine assembly and HDI technology and feature hidden solder joints. This testing visually identifies internal defects invisible to the naked eye, such as solder bridges and voids. It ensures that structural integrity meets the high-reliability standards of IPC Class 3.
PCBA Functional Testing
The last functional test is done in an operationally realistic environment to validate the communication between the miniature camera module and the video processor. You need to check whether the light provided by the light-emitting board is uniform and 4K UHD-compliant image output. The validation confirms that the device is ready for ISO 13485-certified clinical settings and is safe for the patient.
Partner with PCBMay for your next endoscopic device project. We combine specialized medical expertise with ISO-certified high-reliability manufacturing. Our team optimizes HDI and rigid-flex designs for clinical-grade precision. Let us accelerate your R&D cycle today. Contact our engineering experts now to request your custom project quote.
Flexible polyimide is the major substrate used for the insertion tube as it provides excellent thermal stability. Manufacturers combine rigid-flex PCB structures with these for better handling at the control sections. This blend guarantees that the micro-PCB is strong yet adaptable.
These boards can withstand the harsh autoclaving temperatures of up to 137°C, thanks to the use of high-temperature substrates and sterilization-compatible PCB coatings. You depend on waterproof assembly and protective conformal coatings to prevent chemical damage. This design allows for safe reusability of the gastroscope PCB.
In order for the boards to be safe for medical settings, they must all meet the ISO 13485 standards. Most of our designs also meet IPC Class 3 standards, the highest bar for high-reliability electronics. All medical imaging PCBA must comply with this.
A robust medical imaging PCBA is designed to endure intensive use and multiple clinical cleaning cycles over the years. By using robust materials like a polyimide substrate, you make sure that the device will not lose signal integrity for its entire life cycle. Used properly, these complex tools can last longer.
