Via Tenting, Via Filling and Via Plugging: Which Is Right for Your PCB?

Introduction

Deciding how to treat your board’s holes is a major step in your PCB process. You must balance physical protection against your total project budget. Via Tenting, Via Filling, and Via Plugging each offer unique ways to shield your circuits. Choosing the right method ensures your electronics stay strong and functional for years.

What is a Via in a PCB?

This is a tiny hole in your PCB. It links different layers. It lets signals and power move from one layer to another. Without vias, multilayer boards can’t pass electricity correctly.

These holes are often called plated-through holes (PTH). They are coated with copper to carry current efficiently. You rely on them for stable connections across layers.

In multilayer PCBs, vias keep everything connected. They make sure your board works as it should. Each via may be small, but it plays a big role in your circuit’s performance.

What is Via Covering?

Via covering is the process of protecting or sealing the vias on your PCB. You can do this by tenting, plugging, or filling the holes.

The main goal is to shield the via from moisture, dust, or other environmental damage. It also helps your board last longer and perform better in demanding applications.

Covered vias give your PCB extra reliability. They keep the connections safe and ensure your circuit runs smoothly.

What is Via Tenting?

It means you coat the via’s annular ring with solder mask while the hole stays mostly open. This layer shields the via from moisture, dust, and stray solder. It also lowers the risk of short circuits. The process is simple and low cost, so you often see it in standard PCB designs. You don’t need extra materials, and the process is fast. While it doesn’t fully seal the via, it gives basic protection for most applications.

Pros

·       Most Cost-Effective

Via tenting is cheap because you don’t need extra materials or processes. You only apply the solder mask over the via. This keeps costs low and works for large production runs without added fees.

·       Simple to Implement

The process is straightforward. You can add via tenting to standard PCB designs easily. No complex setup or extra steps are needed. It’s quick, which saves time during manufacturing.

·       Reduces Exposure Risk

Covering the annular ring helps reduce contact with moisture, flux, or dust. This lowers the chance of corrosion or accidental shorts. Even if the hole isn’t fully sealed, your board gets basic protection.

Cons

·       Incomplete Closure

Because the via hole isn’t fully sealed, some contaminants can still enter. Dust or moisture might reach the inner layers, especially in harsh environments. Tenting isn’t ideal for critical or sensitive boards.

·       Only Works to Smaller Vias

It works best for smaller vias in 12 mil or less. Larger vias may not get proper coverage, leaving gaps that defeat the purpose of protection.

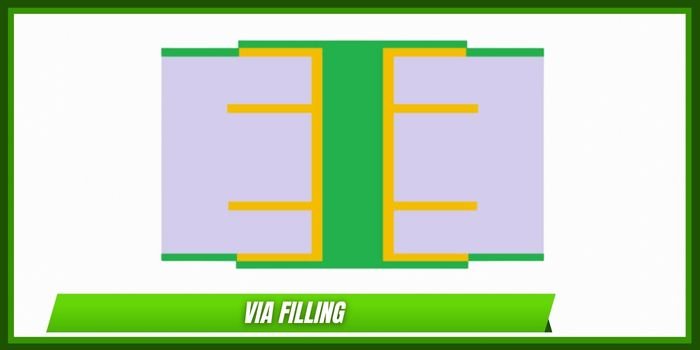

What is Via Filling?

This is where the via hole is completely filled with solder resist ink. This method seals the entire hole, including the annular ring, protecting it from environmental factors. Via filling strengthens your PCB more than tenting and is easier to do than plugging. It’s a reliable option for many standard designs where full via protection is needed.

Types of Via Filling

Conductive Via Filling

You use conductive via filling when your board handles high current or needs to move heat fast. The via gets filled with silver or copper epoxy. This helps transfer heat from one side to the other. It’s great for hot components. But watch out because these fills and the board expand differently. If things get too hot, cracks can form in the via walls.

Non-Conductive Via Filling

Non-conductive fill doesn’t block your signals. The copper plating along the walls still carries electricity. The fill just takes up the empty space inside. It stops solder from leaking and gives a solid base if you add a copper cap. Think of it as a stable, masked plug that keeps your pads flat and ready for assembly.

Pros

·       100% Filling Assurance

Via filling ensures the via is fully sealed. No gaps remain inside the hole. This gives complete protection against moisture, dust, and other contaminants. You can rely on the board to stay safe over time.

·       More Affordable Than Plugging

While more secure than tenting, via filling costs less than via plugging. You get full protection without the higher price or complexity of plugging. It’s a good balance between reliability and cost.

·       Strengthens the PCB

Filling the via adds mechanical strength to your board. It supports the surrounding layers and prevents potential weak spots in the PCB structure. This helps your board last longer and handle stress better.

Cons

·       Difficulty with Very Small Vias

Via filling works best for vias larger than 0.3mm. Smaller vias are tricky because the ink may not fully fill the hole due to surface tension. This could leave gaps or weak points.

·       Not Recommended for Via-in-Pad

If your design uses Via-in-Pad, filling may not provide enough stability. Active component pads like BGAs need extra support, which filling alone cannot provide.

What is Via Plugging?

This process is also known as Resin Plugging in PCB manufacturing, which completely fills the via with conductive or non-conductive resin (epoxy). The mainstream plugging material in the industry. This seals the hole, strengthens the PCB, and prevents solder contamination. Plugging is usually used for complex designs or high-density boards where stability is critical.

Via Plugging Types

Non-Conductive Plugs

It fills the via with a non-conductive material. It prevents dust or moisture from entering the via. It also gives structural support, which is crucial for high-density designs like BGAs.

Conductive Plugs

This plugs the via with a conductive material. It’s used for heat dissipation or handling high current. Conductive plugging is more expensive and can face thermal expansion issues.

Pros

·       Essential for Via-in-Pad Stability

Plugging supports pads directly above the via. This is important for Via-in-Pad designs, where active components sit on top of the hole. Without plugging, pads could collapse or fail during soldering.

·       Prevents Solder Contamination

Plugged vias stop solder from wicking into the hole. This keeps the pad and via clean, which improves the reliability of your board during assembly.

Cons

·       Highest Cost and Complexity

Plugging is more expensive than tenting or filling. It requires extra materials, precise filling, and additional steps in production.

·       Potential Thermal Expansion Issues

Conductive plugging may expand faster than the surrounding PCB material. This can cause cracks or fractures, especially in heat-sensitive designs.

When to Use Via Tenting, Filling, or Plugging?

Choose Via Tenting When

Via tenting is the simplest and cheapest option. You use it when you just want to cover the via with solder mask. It protects the annular ring from dust, moisture, or other environmental exposure. This works well for standard designs with small, non-critical vias. It’s quick and easy, and it gets the job done without extra cost.

Choose Via Filling When

Via filling is useful when you need the via fully filled with soldermask or epoxy. It’s cheaper than plugging and works for most standard designs. It gives a solid, flat surface, which helps later assembly. But very small vias or precise via-in-pad designs may not suit filling. You get good coverage, but there are limits.

Choose Via Plugging When

Via plugging is best for dense boards or sensitive designs. It’s ideal for via-in-pad applications that need extra strength or to prevent solder contamination. Plugging gives a fully supported via, but it costs more. Conductive fills can also cause thermal expansion issues, so you need to handle them carefully.

Common Applications in PCB Design

Choosing the right via process depends on your board’s complexity, density, and protection needs. Some vias need only basic coverage. Others need full sealing or extra support.

Via Tenting Applications

• Best for general, non-critical PCB designs.
• Provides basic protection for vias without full sealing.
• Cost-effective and simple to apply.
• Common in standard, less complex boards.

Via Filling Applications

• Ideal for standard boards that need contamination prevention.
• Fully seals the via for a flat, clean surface.
• Does not provide structural support.
• Works well for designs that need extra protection but aren’t too complex.

Via Plugging Applications

• Suited for high-density or sensitive PCB designs.
• Essential under BGA pads or heat-sensitive components.
• Provides structural support and prevents solder issues.
• Helps with heat dissipation in active vias.

Design Tips for Via Covering

When you cover vias in your PCB design, small choices make a big difference. Each method affects performance, cost, and reliability. Keep these tips in mind.

1. Pick the Best Covering Method – Choose a via covering approach that fits your board’s needs. Think about your environment, electrical goals, and how the board will be made.
2. Manage Heat Effectively – If your board gets hot, plan for heat flow. Conductive fills or copper-capped vias help move heat away from components.
3. Plan for Smooth Manufacturing – Talk with your PCB maker early. Some methods need special machines or extra steps. Planning ahead avoids delays.
4. Balance Cost with Benefits – Complex via covering can raise costs. Decide if the performance gain is worth it. Simpler methods often work fine.
5. Match Materials to Your Design – Different fills act differently. Some conduct heat better, some carry electricity differently. Pick a material that fits your board.
6. Build for Long-Term Reliability – Harsh conditions need stronger protection. Double-sided filling or plugging adds extra safety for critical boards.
7. Keep Signal Quality in Mind – High-speed boards need careful planning. Some covering methods can add unwanted capacitance or inductance. Choose one that keeps signals clean.
8. Make Testing Easy – Some methods make it harder to test vias later. Think about how you’ll inspect or measure them after covering.
9. Via Size Matters – Tiny vias can be hard to fill completely. Large vias might need extra care. Size affects which method works best.
10. Consider Future Modification – If you plan to modify the board later, pick a covering method that lets you do it. Some fills and plugs make changes harder.

Challenges and Considerations in Via Filling and Plugging

Cost Considerations

Conductive via fills can increase manufacturing costs because of the materials and extra processing steps. Non-conductive fills or plugging are cheaper options, but they might not meet all performance requirements. You have to weigh the cost against what your board needs.

Manufacturing Complexity

Filling or plugging vias in dense or high-layer boards requires precision. Any incomplete fills or tiny voids can reduce reliability. Close attention to process control is essential to ensure consistent results and prevent failures.

Design Limitations

Filled or plugged vias can limit future modifications. They may make rework or design changes harder once the board is manufactured. You need to account for this early in your design planning to avoid costly problems later.

PCBMay: Trusted PCB Manufacturer with Via Tenting, Via Filling, and Via Plugging

PCBMay provides high-precision drilling and via technologies for complex, high-density designs. With 20+ years of expertise, we ensure reliable electrical connectivity for everything from standard boards to advanced HDI projects.

Via Specific

ation Overview

Why Choose PCBMay Via Technology?

• High-Density Solutions: We use laser drilling for microvias, allowing for smaller footprints and more compact PCB designs.
• Signal Integrity: Our Back Drilling service removes unused via stubs, eliminating signal reflections in high-speed circuits.
• Proven Reliability: All vias are tested via cross-sectioning and thermal stress analysis to meet IPC Class 2/3 standards.

We provide free DFM checks to optimize your via diameters and clearances, helping you avoid manufacturing delays. Need a quote? Send your Gerber files to sales@pcbmay.com.

Conclusion

Your choice between Via Tenting, Via Filling, and Via Plugging changes how your board performs. Each method has a specific role in modern electronics design. Using the right combination will make your project a long-term PCB success.

Frequently Asked Questions

• Is Via Filling a Better Choice Than Via Tenting?

Filling is technically safer for the long-term health of the board. It stops air and chemicals from getting trapped in the barrel. However, it does cost more. If you need a long product life, filling is the better move.

• Can Via Tenting Fully Seal a Via?

No, it usually leaves a tiny pocket of air trapped inside. This air can expand and pop the mask skin when the board gets hot. It is a protective cover, but not a true airtight seal.

• How Do You Choose the Right Via Process for Your PCB?

Start by looking at your component list. If your chips have very small pins, you likely need a plug. If you want to keep costs low and the design is simple, tenting is fine. Consider where the board will be used.

• Does Via Plugging Prevent “Solder Wicking”?

Yes, it completely blocks the path for liquid solder. This keeps the solder on the surface pad where it belongs. It ensures your components have a strong, reliable connection. It prevents many common assembly errors.

• What Are the Benefits of Conductive Vs. Non-Conductive Via Filling?

Conductive fill helps move heat away from high-power parts. Non-conductive fill is more stable and better at matching the board’s natural movement. Most designers pick non-conductive for general use. Conductive is for specialized thermal problems.

• Why Is Via Tenting Risky for Large Via Diameters?

Liquid solder mask cannot stretch over a large gap without breaking. It will sag or rip during the curing process. This leaves the internal copper wide open to damage. You should only tent small, standard vias.
